Roof Top Tent Quick Release Mounts

Name: Roof Top Tent Quick Release Mounts
Brand: Vanultra
SKU: 1630-105
Price: 299.0 USD
Availability: InStock

80 total reviews

$299.00

Sale Sold out

Shipping calculated at checkout.

The options are dependent on your tent.

Quantity

Free USPS Shipping – Typically arrives in 5–7 business days! (U.S. only)

View full details

Verify your set-up is compatible in 3 easy steps:

1. Check your clearance

Please ensure that you are able to maneuver your hand underneath your rack to operate the mounting system. A minimum 3.5" of space is needed below the tent mounting rail to fit the mounts. This product is NOT COMPATIBLE with Rhino Rack Pioneer platforms or Gobi roof racks.

TIP: Do the "credit card test", you must be able to fit a card's length between your tent and vehicle (see image 15).

Own a low profile roof rack (ex. Sherpa or Prinsu). Check out this product instead.

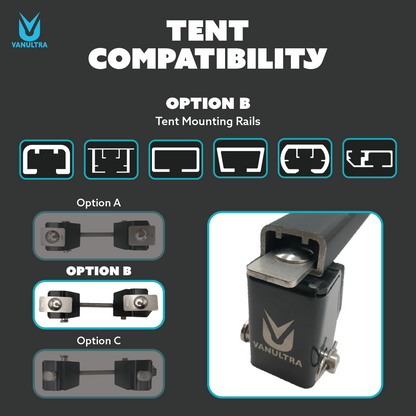

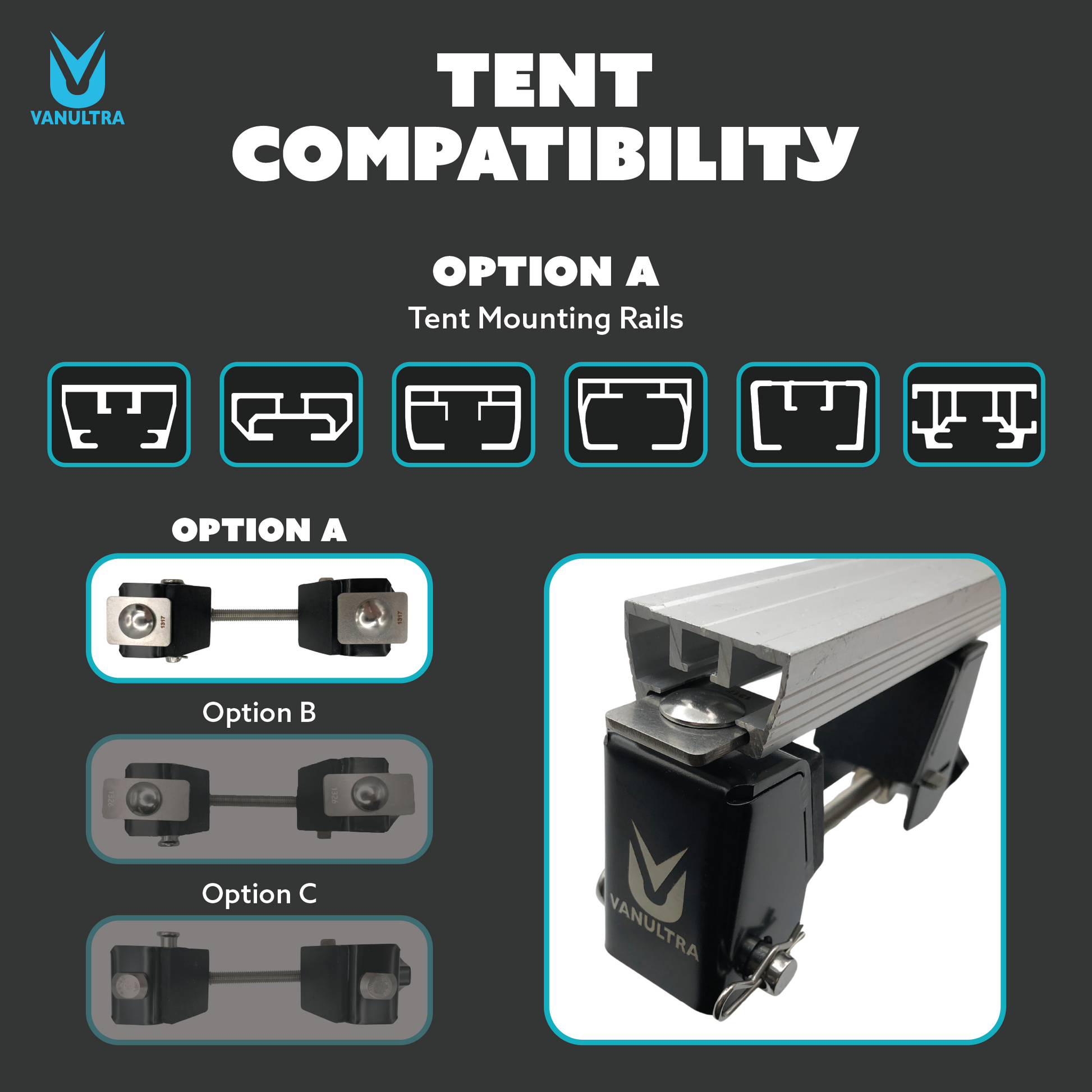

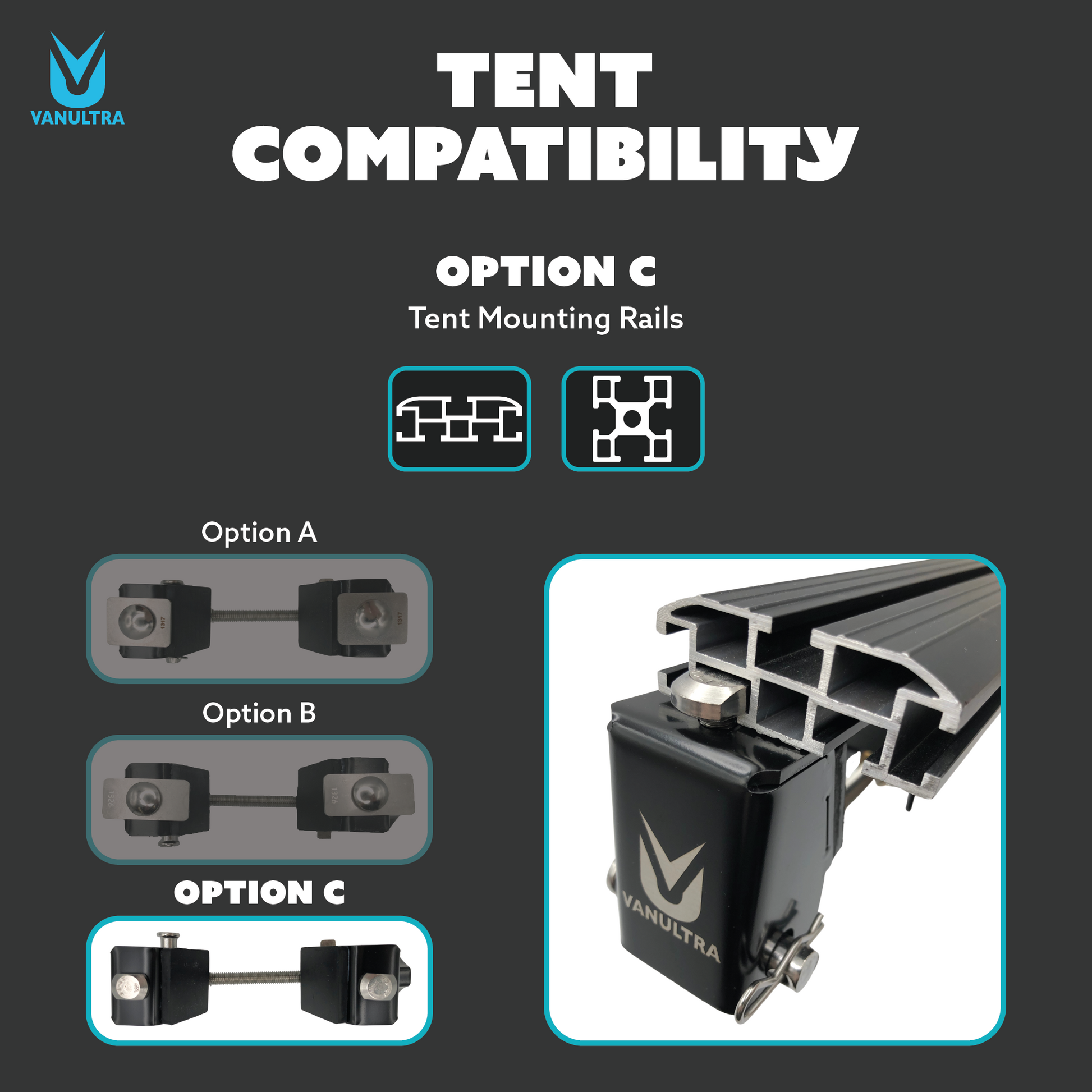

2. Check your tent

Take a look at your tent mounting rail and match the geometry shown in the images for Option A, B, C. Each option has different hardware at the top that best fits your tent mounting rail. You may also search for your tent model in the matrix down below.

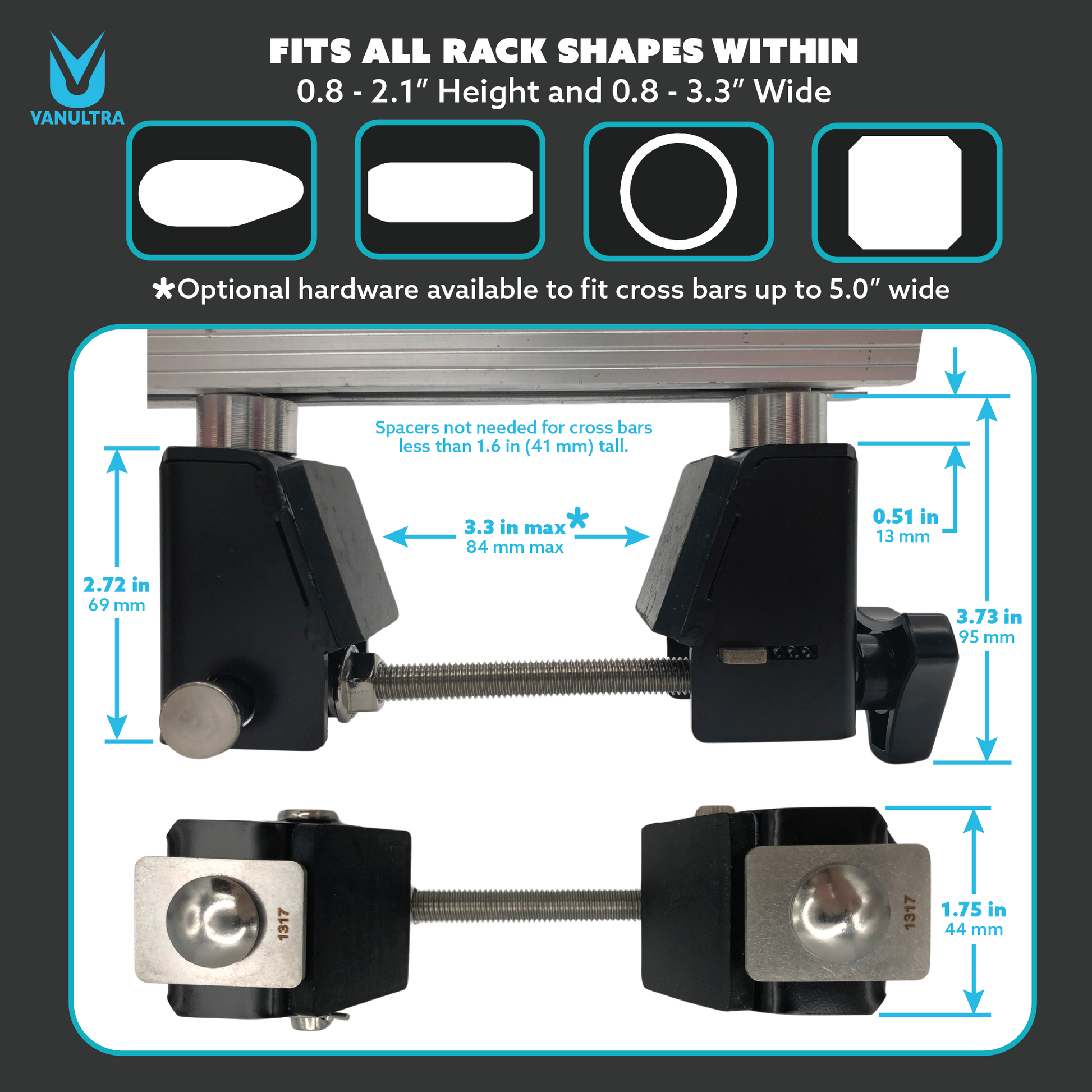

3. Check your rack

Fits rectangular cross bars within these sizes:

Height	Width
0.75″ Min	0.75″ Min
2.1″ Max	3.3″ Max

Have a wider cross bar?	Check out this Wide Bar Fit Kit

Fits round tube cross bars within these sizes:

Round Tube

1.1″ - 2.1″ Outside Diameter

_______________________________________________

THE PROBLEM - Roof top tent hardware is time consuming and difficult to remove

Roof top tents need to be removed regularly to:

Improve your fuel mileage
Improve your vehicle handling
Enable garage parking
Use automatic car washes
Access drive-throughs
Install other roof rack accessories (kayaks, mountain bikes, etc.)
Prevent tampering of the tent

THE SOLUTION – Vanultra Roof Top Tent Quick Release Mounts

Product key features:

Quick Release / Disconnect
Low profile – no height added to the tent
Compatible with most racks – round tubular, rectangular and brand specific crossbars
Drop and drive install – tent alignment is set once with the fixed side of the mount
No tools required after initial install
Locking feature with 1/2″ hitch pins (sold separately)

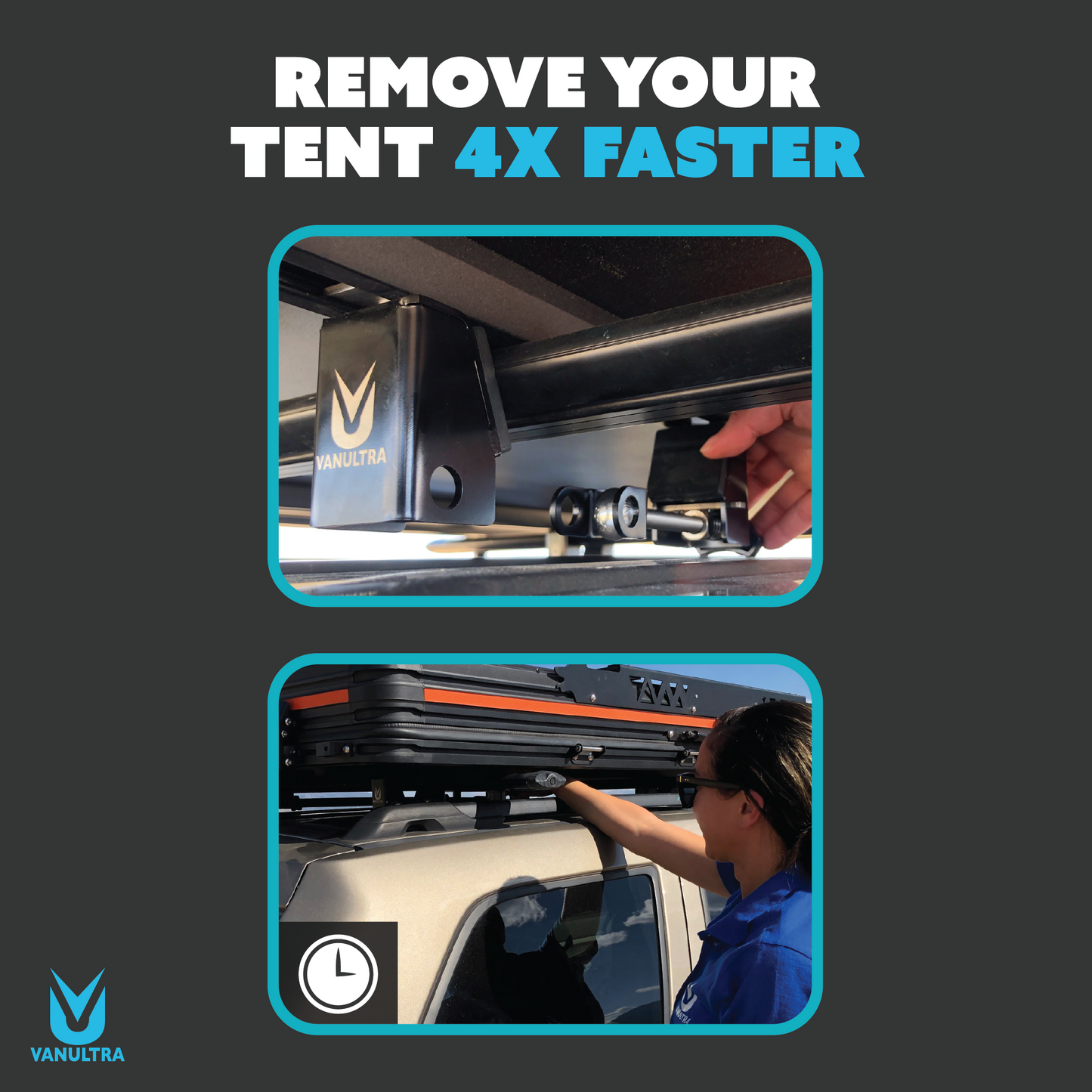

Learn How Quick the Mounts Are:

Learn What the Options Mean and What's Included:

Learn How to Install the Mounts:

Review the matrix below to select the OPTION that'll best fit your tent.

IMPORTANT NOTE: Slight variations in tent rails may require minor modifications for a proper fit. Our parts are stainless steel and won’t rust if trimmed or ground down.

Tent Model	Tent Version	Option
Weekender	56, 62, 72	Option A
Breezeway	56, 62, 72	Option A
Walkabout	56, 62, 72, 87	Option A
Kabari	Original (2022 and older)	Option C
Kabari	2.0	Option C
Kabari	Lite, X, XL, 3.0	Option A
Armadillo	X, X2 (2022 and older)	Option C
Armadillo	X, X2, X2 Slim (2023+)	Option A
Armadillo	A2, A3, X3	Option A

Tent Model	Tent Version	Option
Alto	Mini, Elite	Option A
Nimbus	–	Option A
Stratus	2.0	Option A

Tent Model	Tent Version	Option
LT-50	-	Option C

Vanultra quick release mounts are not compatible with Alu-Cab Gen 3.1 or Gen 3-R because there are no mounting frame rails under the tent. These tents have side frame rails and use a custom bracket system.

Tent Model	Tent Version	Option
Esperance	-	Option A
Flinders	-	Option A
Kakabu	-	Option A
Simpson III	-	Option A

Tent Model	Tent Version	Option
All Models	-	Option B

Tent Model	Tent Version	Option
Baby Shack	-	Option A
Shack	-	Option A
Big Shack	-	Option A
Penthouse	-	Not Compatible

Vanultra quick release mounts are not compatible with Bushwakka Penthouse RTTs because there are no mounting frame rails under the tent. These tents have side frame rails and use a custom bracket system.

Tent Model	Tent Version	Direct Fit
Pioneer	Mt. Shasta	Option A
Pioneer	Mt. Rainier	Option A
Pioneer	Mt. Denali	Option A
Pioneer	Bachelor	Option A
Mt. Washington	Small, Medium	Option A
Mt. Thielsen	Small, Medium	Option A
Mt. Hood	Small, Medium, Large	Option A
St. Helens Tent	-	Option C

Tent Model	Tent Version	Direct Fit
Ninja	S, M, L	Option A
Soldier	V2, V2 XL	Option A
Tank	XL	Option A
UL	-	Option A
Warrior	Standard, XL	Option A

Tent Model	Tent Version	Option
Blade	-	Option A
Stealth	-	Option A
Sword	-	TBD
Family	-	TBD
Fun	-	Option A
Jazz	-	Option A
Series 3	-	Option A
Xklusiv	-	Option A
Globe	Drifter	TBD
Globe	Tracker	TBD

More information is required for Sword, Family and Globe tents.

Tent Model	Tent Version	Option
Aspen	Original, Lite	Option A
Evolution	49, 55	Option C
Evolution V2	Short, Long	Option A
High Country	63, 80	Option C
Odyssey	49, 55	Option C

Tent Model	Tent Version	Option
Roof top tent	tent031	Option A

Tent Model	Tent Version	Option
Superlite	-	Option B

Vanultra mounts are not compatible with GFC Platform V2 RTT because there are no front to back frame rails. The optional mounting rails offered by GFC will not work with Vanultra mounts.

Tent Model	Tent Version	Direct Fit
Skycamp	3.0, 2.0, 1.0	Option A
Skycamp Mini	3.0, 2.0, 1.0	Option A
X-Cover	2.0, 1.0	Option A
X-Cover Mini	2.0, 1.0	Option A
BDV	Duo, Solo	Option A

*The BDV tents require the Vanultra mounts to be fully disassembled so the unique iKamper BDV washers can be reused with the Vanultra brackets. Contact sales@vanultra.com for more information*

Tent Model	Tent Version	Option
Lightweight	Standard, Carbon Fiber, XL	Option C

*Please leave a note at checkout or message us if you have an Inspired Overland tent. We will make a small adjustment prior to shipping it to you.

Tent Model	Tent Version	Option
Geo 2.5	-	Option B
Geo Solo	-	Option B
Geo 3.0	-	Option B	-

Tent Model	Tent Version	Direct Fit
Swift	1400	Option B
Nomad	1300	Option A
Soft Shell	-	Option A
Ursa	1300	Option C
Orion	1400	Option C
Cross	1200	Option C
Uber Lite	-	Option C

Tent Model	Tent Version	Option
Discovery	M, XL	Option B
Space	S, M, XL	Option B
Evasion	S, M, XL	Option B
Grand Raid	M, X, XL	Option B
Vision 150	-	Option B
Vision 180	-	Option B
Odyssey	M, X, XL	Option B

Tent Model	Tent Version	Direct Fit
Polaris	Regular, Plus	Option B
Sirius	Clampshell, 2, 3	Option A
Orion	-	TBD
Andromeda	-	TBD

More information is needed for Orion and Andromeda tents. Please contact us with an image of the tent mounting rail for option determination.

Tent Model	Tent Version	Option
Bushveld	Hard, II	Option A
Nomadic	2, 3, 4	Option A
Mamba 3	-	Option C
TMBK 3	-	Option A
Sidewinder	-	Option C

Tent Model	Tent Version	Option
Orion	Standard, XL	Option A
Pegasus	Standard, XL	Option A

Tent Model	Tent Version	Option
Rambler	-	Option A
Vagabond	Lite	Option A
Vagabond	56"	Option A
Vagabond	XL	Option A

Tent Model	Tent Version	Option
All	-	Option A

Tent Model	Tent Version	Option
Roof Space 2	-	Option B

Tent Model	Tent Version	Option
Meadowlark	-	Option A
Condor	1	Option A
Condor	48"	Option A
Condor	XL	Option A
Condor	Overland	Option A
Falcon	2	Option A
Falcon	2 XL	Option A
Falcon	Pro	Option A
Sparrow	50"	Option A
Sparrow	XL	Option A
Sparrow	Adventure	Option A
Sparrow	Adventure XL	Option A
Sparrow	EYE	Option A

Tent Model	Tent Version	Option
Soft Shell	-	Option A
Hard Shell	-	Option A

Tent Model	Tent Version	Option
All	-	Option A

Tent Model	Tent Version	Option
Gen2	2583	Option A
Gen2	2683	Option A
Gen1	2783	Option A
Gen1	2883	Option A
Hard Shell	2984	Option A
Hard Shell	2985	Option A
Hard Shell	2986	Option A

Tent Model	Tent Version	Option
Cargo	-	Option A
Classic	-	Option A
Lite	-	Option A

Tent Model	Tent Version	Option
Approach	M	Option A
Foothill	-	Option A
Basin	-	Option A
Basin	Wedge	Option A
Ruggedized Autana	-	Option A
Explorer	Ayer	Option A
Explorer	Kukenam	Option A
Explorer	Autana	Option A
Low-Pro	-	Option A

Tent Model	Tent Version	Option
All	-	Option A

Tent Model	Tent Version	Option
Scout Wedge Hard Shell	-	Option B
Nomad Hard Shell	-	Option B

Tent Model	Tent Version	Option
Alpha	I (Pre-2022)	Option B
Alpha	II (Pre-2022)	Option B
Alpha	I (2022+)	Option A
Alpha	II (2022+)	Option A
Stealth	-	Option A
Trailhead	-	Option A
Elite	-	Option A
Ranger	-	Option A
Delta	-	Option A

See note below about Alpha M10 T-bolt:

In Fall 2021, Tuff Stuff redesigned the mounting rails and hardware kit for the ALPHA model tent. Tents purchased prior to Fall 2021 use a custom M10 T-bolt (shown here) with a 17mm hex head lock nut. The industry standard for Roof Top Tents is M8 hardware. Vanultra quick release mounting brackets are not compatible with the M10 T-bolt. A fit kit is required to replace the T-bolt with standard M8 hardware.

ALPHA tents purchased after Fall 2021, do not require fit kits because they include the standard M8 hardware with nut slider plates.

Frequently Asked Questions

Does it lock?

Yes it can! You can purchase a roof top tent lock or use a standard 1/2″ receiver hitch pin lock for 1-1/4″ Class I & II receiver.

What is included in the kit?

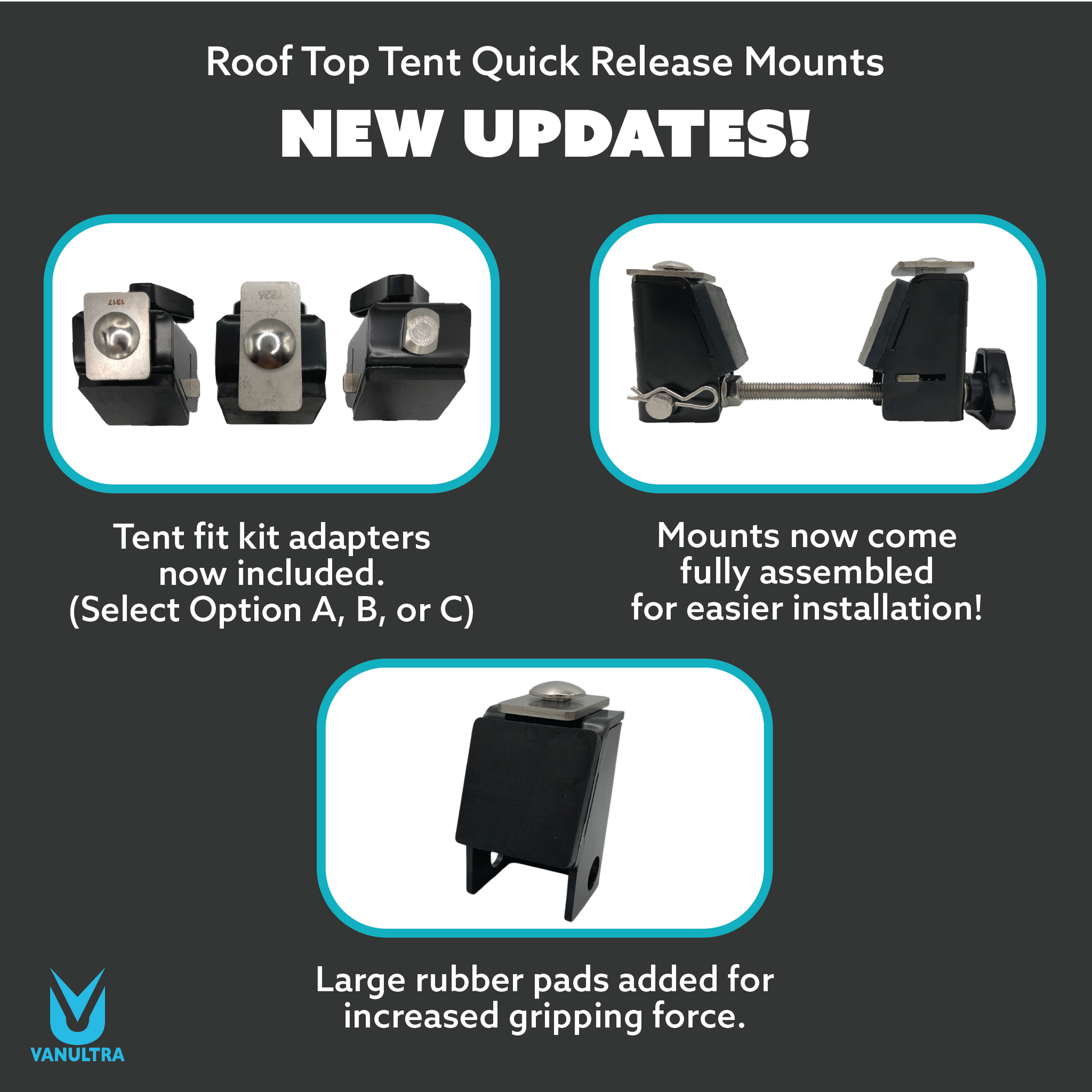

This kit includes 4 roof top tent mounts. They arrive fully assembled but installation steps are required. Spacers are also included (if needed) but will need reassembly to install. Please follow the steps in the instruction manual.

Will it fit my roof top tent?

Check the tent compatibility table and find the model of your roof top tent to learn if any special hardware is required to adapt to your tent.

What is a fit kit?

Fit kits are required for wide crossbars that are between 3.4" and 5" wide. A Fit kit is also needed if you require the "rotating feature" for platform racks. Check out the available fit kits product page.

Will it work with roof rack platforms?

Our mounts are compatible with some roof rack platforms like Front Runner and others when combined with the 1235 Rotation Fit Kit. The washers will allow the mounts to rotate and clear the spacing.

NOTE: They are NOT compatible with the Rhino Rack Pioneer Platform because the slots are going front to back instead of side to side.

How can I space my tent up?

Vanultra mounts do NOT add height and will not space your tent up. On that note, these mounts are not designed to clamp to spacers or riser brackets. If you need extra height you could either raise the cross bars or consider alternative mounting solutions.

My rack is not listed? Will it work?

With hundreds of roof and bed racks constantly coming on the market we can’t list them all. Please feel free to reach out if in doubt. Our mounts will fit roof rack height’s between 0.75″ – 2.1″ and width’s between 0.75″ – 3.3″.

My roof rack is low profile to the vehicle roof, how much clearance is needed?

As a rule of thumb, you will need to be able to fit your arm underneath the cross bar to remove the pins and tighten the knob. Minimum 4" below the tent.

What if it still doesn't fit?

We offer free problem solving advice and quick and easy exchanges. We will do our best to ensure that the product fits correctly the first time, if not, we are happy to exchange it for you. Still concerned? We offer a 30 day return policy.

Is there an option for 6 mounts?

Yes, we offer a kit for 6 mount assemblies for $434. This may be necessary for set ups using a 3rd cross bar to help distribute the weight of the roof top tent. Please contact sales@vanultra.com to purchase.

Do you offer international shipping outside of the USA?

Contact us at sales@vanultra.com so we can review your request and provide you with a quote for shipping and any international fees.

Cancellation and 30 Day Return Policy (as of 6/5/23)

4% cancellation fee for orders cancelled before shipping.
10% restocking fee for unused products in their original packaging, that have been delivered.
20% restocking fee for items that have been open and used.
Sorry we do not accept returns past 30 days from purchase date but we are available to assist with troubleshooting and problem solving. We will do our best to suggest a solution for you!

Addressed my concerns quickly and helped resolve my issue with my application

Addressed my concerns quickly and helped resolve my issue with my application. .Great product and support team.

Price justified

Price justified.
Was looking to replace mounting hardware that came with rooftop tent with something that'd make installations and removal much easier. The payoff for me is since one side of the mounting bracket ends up being permanently mounted and does not need to be moved it provides a consistent forward/aft mounting location. Important when mounting the rooftop tent on an suv since you don't want the trunk lid to hit the tent when opening that trunk.

Excellent Product & Customer Service

I'm very happy with my new Roof Top Tent Quick Release Mounts! While I had a minor fitment issue with the washers for my tent, Trevor's exceptional customer service truly made a difference. He went above and beyond, securing me as a customer for life. Thanks for a great product and even better support!

Top quality service and product.

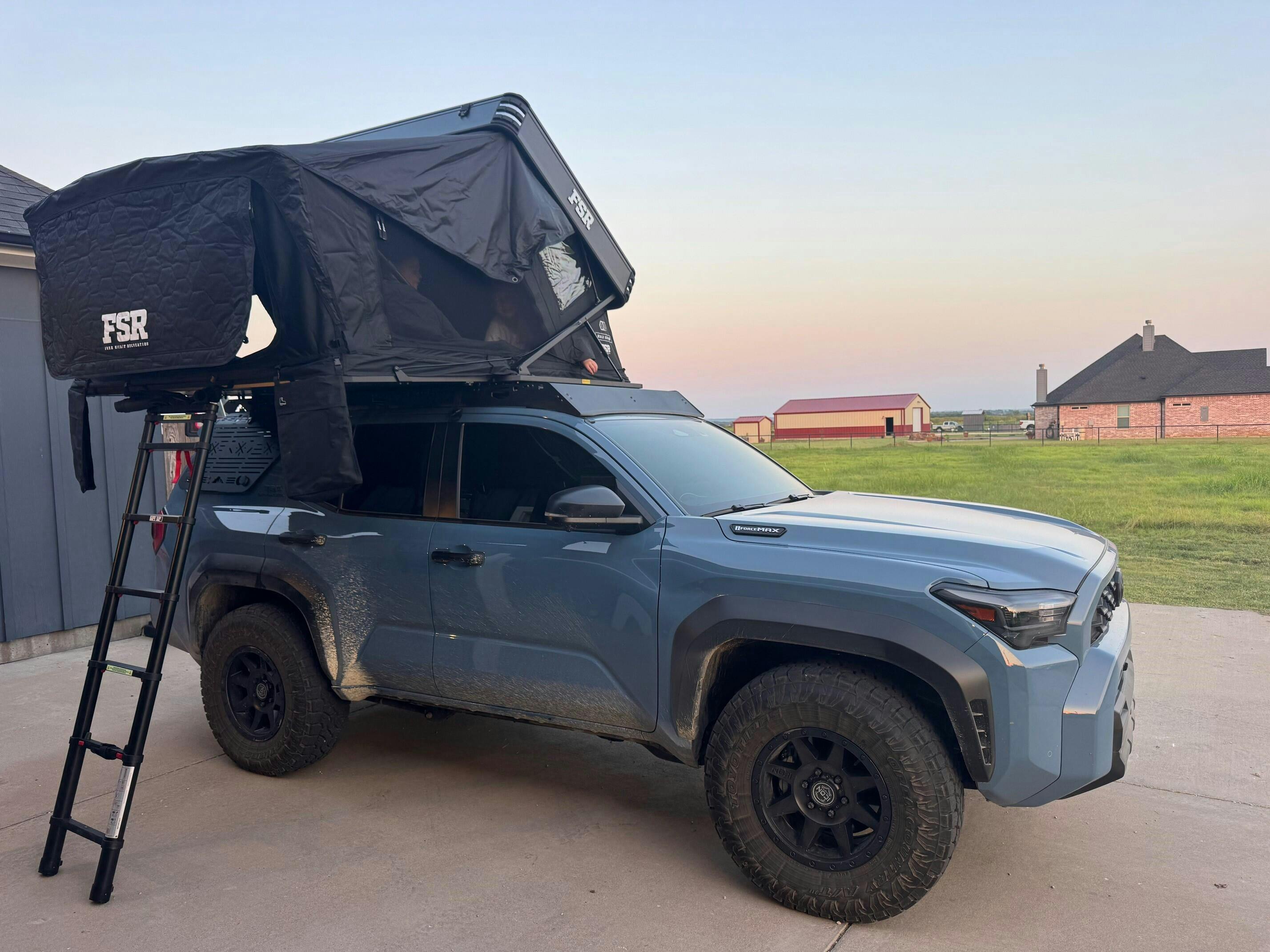

My setup:
2025 4Runner TRD Off Road Premium w/ moonroof
FSR KALI King tent
Sherpa Capitol roof rack

I'm glad I waited to write the review. My first test fit did NOT go well but it was close enough, that I thought we could make it work. I reached out to Vanultra for help and they had two great ideas to try at no cost. We figured out that the interference was caused by the large black knobs - so we swapped those to a wing nut and BOOM! THEY FIT! I'm very happy they fit because the quality and speed is second to none!

A few specific notes on fitment to my setup:
The moonroof really changes the game and may be the cornerstone to using these brackets. It makes installing the front brackets a breeze. In the rear, you must be able to get your hand into the second bar to install the retaining pin. I used pliers to install the cotter pin. worked great, very secure.

Excellent product, well made and designed quick release RTT mounts

I really like these RTT quick release mounts. They are well thought and do the job as expected. Other quick release options the clamps stay on the load bars but with these the mounts stay on the tent which I prefer. They allow you to set a fixed point on the tent to mount to the load bars so that you can quickly set it in the exact same spot every time. They look great, work great and are very rugged. I’ve used them several times now and I am very pleased with them.
